• 双面网格1210
  • 双面网格1111A
  • 双面网格1212
  • 双面网格1311
  • 双面网格1412

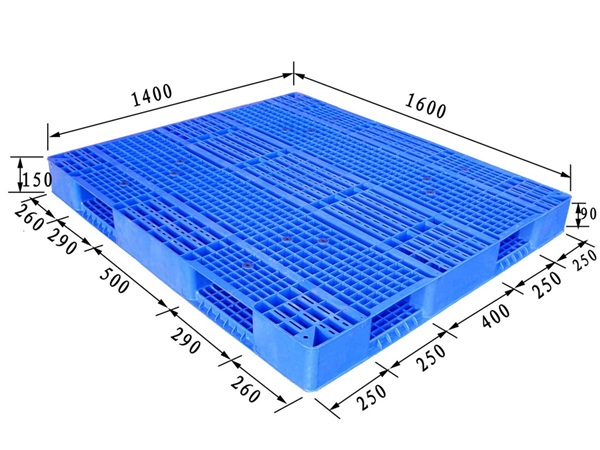

  • 网格双面1614置8钢管
  • 双面焊接1412
  • 双面焊接1515



序号 No.产品型号
SPEC.
规格(mm)
Size
材质
Material
动载(T)
Dynamic (T)
静载(T)
Static (T)
进叉
Entry

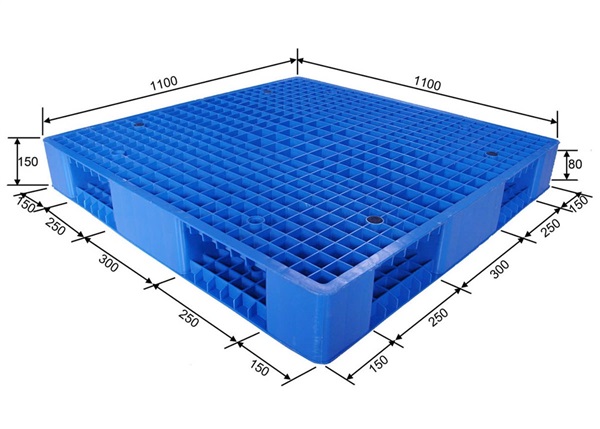

1双面网格A
Double faced open deck A
1100*1100*150HDPE1.5 6.0   四向进叉
4 way
2双面网格B
Double faced open deck B
1100*1100*150HDPE1.5 6.0   四向进叉
4 way
3双面网格C
Double faced open deck C
1100*1000*150HDPE1.2 6.0   四向进叉
4 way
4双面网格
Double faced open deck

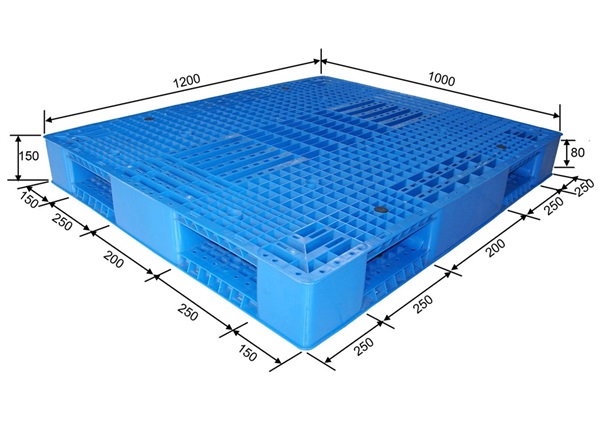

1200*1000*150HDPE1.5 6.0   四向进叉
4 way

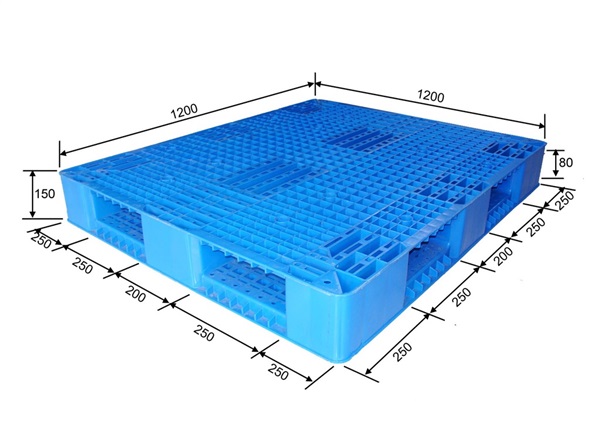

5双面网格A
Double faced open deck A
1200*1200*150HDPE1.5 8.0   四向进叉
4 way
6双面网格B
Double faced open deck B
1200*1200*150HDPE1.5 8.0   四向进叉
4 way

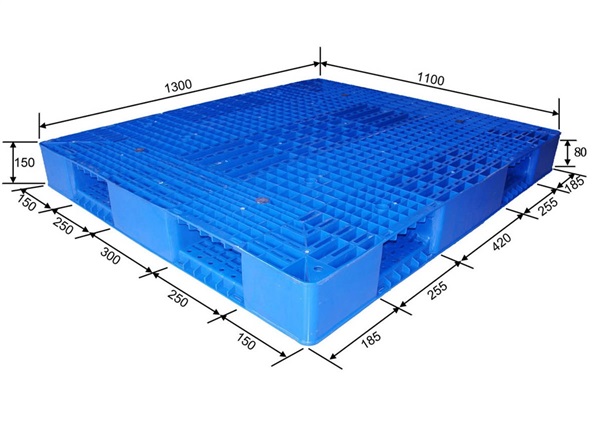

7双面网格
Double faced open deck
1300*1100*150HDPE1.5 6.0   四向进叉
4 way
8双面网格
Double faced open deck
1400*1100*150HDPE1.5 8.0   四向进叉
4 way

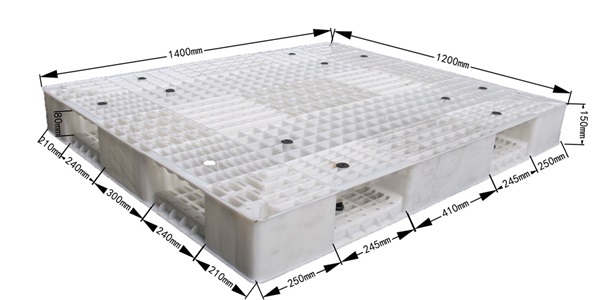

9双面网格A
Double faced open deck A
1400*1200*150HDPE1.5 8.0   四向进叉
4 way
10双面网格B
Double faced open deck B
1400*1200*150HDPE1.6 8.0   四向进叉
4 way
11双面网格C
Double faced open deck C
1400*1200*150HDPE1.6 8.0   四向进叉
4 way
12双面焊接A
Double faced welding design A
1400*1200*150HDPE1.5 5.0   四向进叉
4 way
13双面焊接B
Double faced welding design B
1400*1200*150HDPE2.0 8.0   四向进叉
4 way
14双面焊接
Double faced welding design
1400*1200*151HDPE2.0 10.0   四向进叉
4 way
15双面焊接
Double faced welding design
1400*1200*152HDPE2.0 10.0   四向进叉
4 way
16双面平板焊接
Flat double faced welding design
1400*1200*153HDPE1.5 6.0   四向进叉
4 way
17双面网格
Double faced open deck
1400*1200*154HDPE置8钢管
8 steel tubes
2.0 8.0   四向进叉
4 way
18双面网格焊接
Double faced open deck ,welding
1400*1200*155HDPE置8钢管
8 steel tubes
1.8 8.0   四向进叉
4 way
19双面平板焊接
Flat double faced welding design
1400*1200*156HDPE置8钢管
8 steel tubes
1.8 8.0   四向进叉
4 way
