序号 Item.产品型号
SPEC.
规格(mm)
Size
材质
Material
动载(T)
Dynamic (T)
静载(T)
Static (T)
进叉
Entry

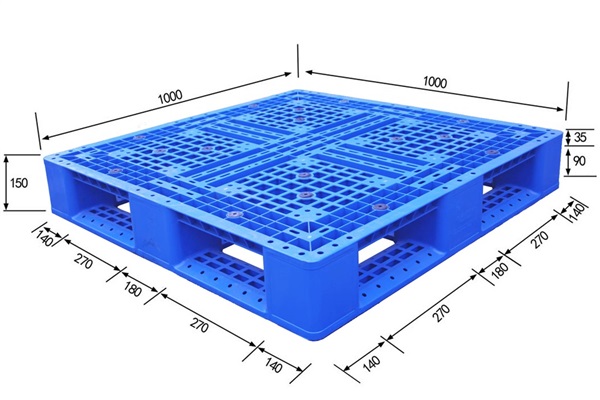

1田字网格
Grid single faced full-perimeter
1000*1000*150HDPE1.0 4.0四向进叉
4 way
2田字网格
Grid single faced full-perimeter
1080*1080*150HDPE0.8 4.0四向进叉
4 way

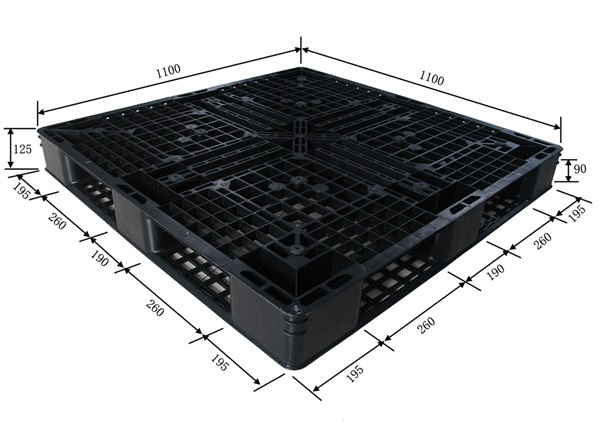

3田字网格
Grid single faced full-perimeter
1100*1100*125HDPE0.5 1.5四向进叉
4 way

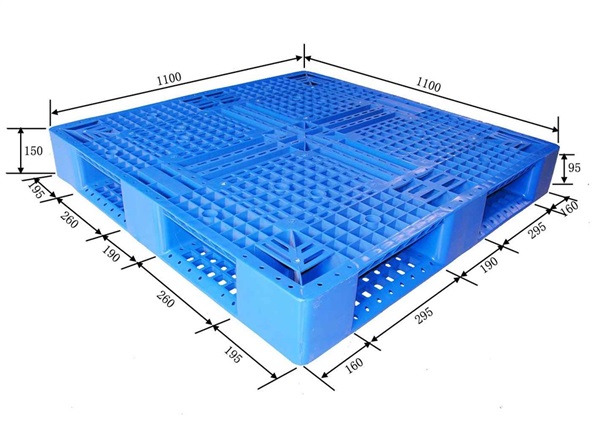

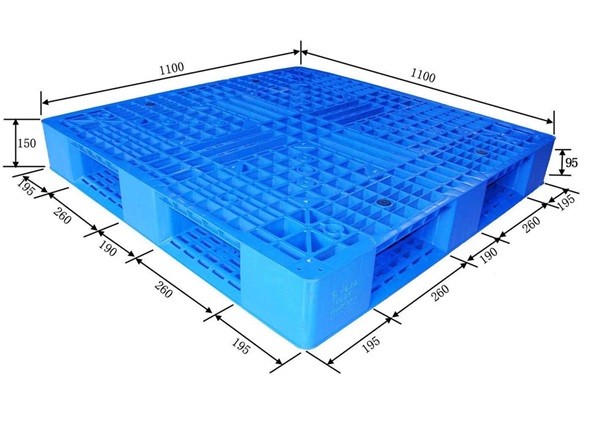

4田字网格
Grid single faced full-perimeter
1100*1100*150HDPE1.0 4.0四向进叉
4 way
5田字网格
Grid single faced full-perimeter
1100*1100*150HDPE0.8 3.0四向进叉
4 way
6田字网格
Grid single faced full-perimeter
1100*1100*150HDPE1.2 5.0四向进叉
4 way
7田字网格
Grid single faced full-perimeter
1100*1100*150HDPE1.5 6.0四向进叉
4 way
8田字网格
Grid single faced full-perimeter
1200*800*150HDPE0.8 4.0四向进叉
4 way
9田字网格
Grid single faced full-perimeter
1200*1000*125HDPE0.5 1.5四向进叉
4 way

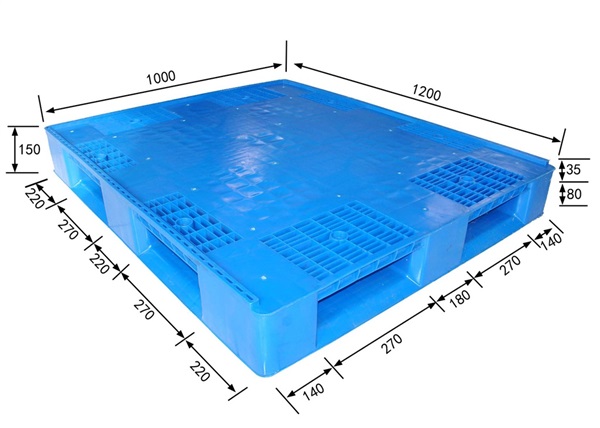

10田字网格
Grid single faced full-perimeter
1200*1000*150HDPE1.0 4.0四向进叉
4 way
11田字网格
Grid single faced full-perimeter
1200*1000*150HDPE1.0 4.0四向进叉
4 way
12田字网格
Grid single faced full-perimeter
1200*1000*150HDPE1.5 6.0四向进叉
4 way
13田字网格
Grid single faced full-perimeter
1200*1000*150HDPE1.5 6.0四向进叉
4 way

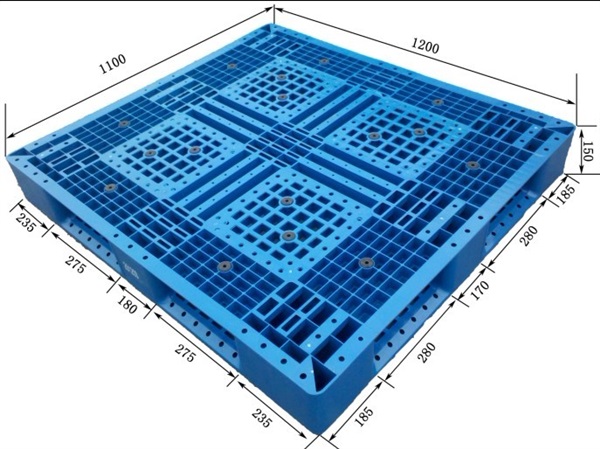

14田字网格
Grid single faced full-perimeter
1200*1100*150HDPE1.5 5.0四向进叉
4 way

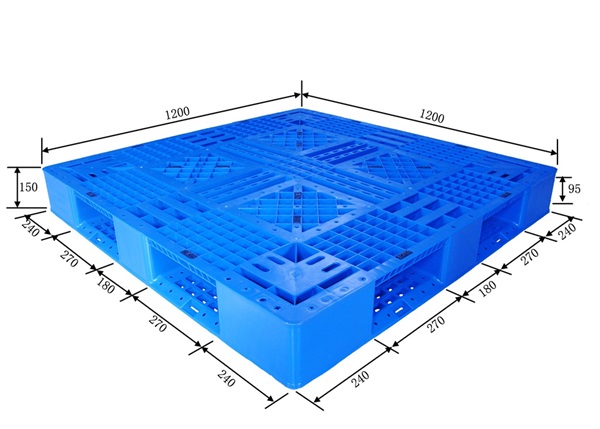

15田字网格
Grid single faced full-perimeter
1200*1200*150HDPE1.5 6.0 四向进叉
4 way

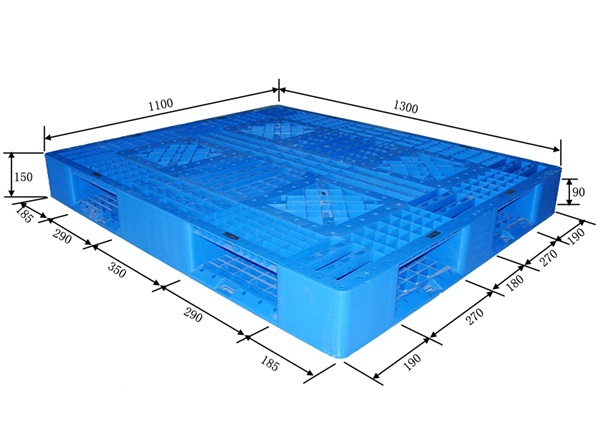

16田字网格
Grid single faced full-perimeter
1300*1100*150HDPE1.0 4.0   四向进叉
4 way
17田字网格
Grid single faced full-perimeter
1300*1100*150HDPE1.5 6.0   四向进叉
4 way
18田字网格组合
Grid single faced full-perimeter combined
1100*1100*150HDPE内置14根钢管
14 steel tubes
1.5 8.0   四向进叉
4 way
19田字网格组合
Grid single faced full-perimeter combined
1200*1000*150HDPE内置14根钢管
14 steel tubes
1.5 8.0   四向进叉
4 way
20田字网格组合
Grid single faced full-perimeter combined
1200*1000*150HDPE内置16根钢管
16 steel tubes
1.5 8.0   四向进叉
4 way
21田字网格组合
Grid single faced full-perimeter combined
1100*1100*150HDPE内置14根钢管
14 steel tubes
1.5 6.0   四向进叉
4 way
22田字网格组合
Grid single faced full-perimeter combined
1200*1000*150HDPE内置3根钢管
3 steel tubes
1.0 5.0   四向进叉
4 way
23田字网格组合
Grid single faced full-perimeter combined
1200*1000*150HDPE内置14根钢管
14 steel tubes
1.5 6.0   四向进叉
4 way
